LouieP Séries steam sterilizer P-M10TR

Regular price $5,478.76 USD Sale price $5,478.76 USD Regular price $4,682.70 USD
In stock
Description

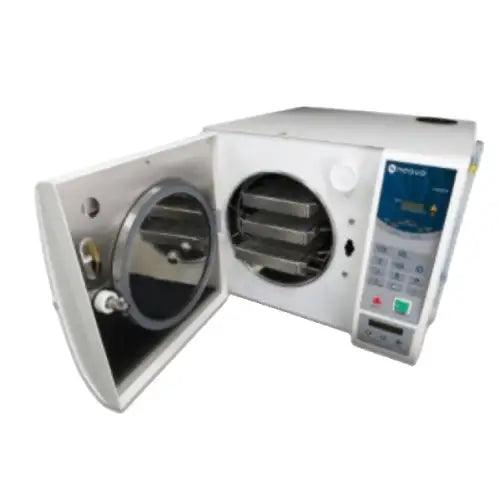

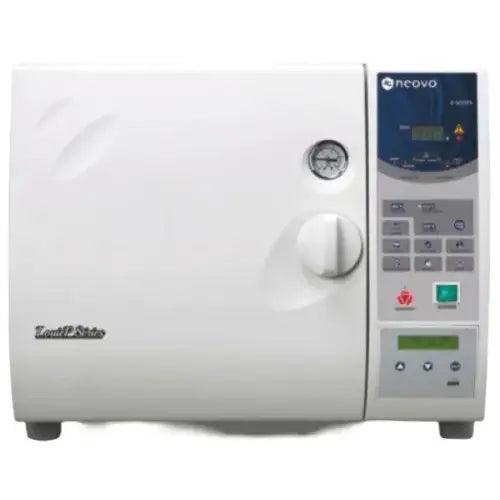

LouieP Séries steam sterilizer P-M10TR

An Ideal Steam Sterilizer for Dental Clinics and Practices

Safe & Reliable, Easy-to-Use, Efficient Sterilization

LouieP Séries steam sterilizer is designed to be safe, reliable, and easy-to-use for dental clinics and practices that require an affordable alternative for sterilization of wrapped, simple hollow instruments and textiles. With its clear-to-see display of sterilization cycle selection and operation status indicator, LouieP Séries enables you to reduce work efforts and save operation time in every busy day at clinics.

Featuring dynamic air-removal technology, pre-programmed cycle, and closed-door drying, LouieP Séries P-M10TR allows the high-efficiency operation to sterilize wrapped instruments with fewer system errors. Built with ASME certified pressure chamber and auto-disconnect safety mechanism, it provides a safe and sterile environment for your daily operation.

Features:

Safety

  • 2-Step door opening protection
  • Closed-door drying design
  • Over pressure and temperature control with auto-disconnect mechanism

Reliability

  • FDA cleared
  • ASME certified pressure chamber

Performance

  • Dynamic Air-removal Technology
  • Post-vacuum drying for extra dryness

Efficiency

  • Automatic water filling
  • Easy USB data logging for sterilization cycle repor

Specifications:

Model P-M10TR
Chamber Size 10.2” (26cm) Diameter x 17.7” (45cm) Depth
Overall Dimensions (W x H x D) 221” x 17.4” x 25.8” (53.3cm x 44.2cm x 65.5cm)
Minimum Countertop Area (W x D) 29” x 29.8” (73.7cm x 75.7cm)
Volume 6.3Gal (24 liters)
Tray (W x D) Three (6.25” x 15” / 15.9 cm x 38.1 cm)
Voltage / Power (heater) 12A / 120VAC 60Hz / 1400W
Programmed Cycle 270°F Unwrapped, 270°F Wrapped (Pouches), 250°F Wrapped (Packs), Handpieces, B.D. Test (Cleaning), Pump Test, Re-Dry
Water Reservoir Capacity & Filling Access 1.1 Gal (4.2 liters) & Top (Rear)
Closed Door Drying Yes
Data Logger Yes (via USB port)
Unit Weight 127.9 lbs (58 kg)
Shipping Weight 134.5 lbs (61 kg)
Safety Standards IEC 61010-1, 3rd Edition
IEC 61010-2-040:2015
ASME Boiler & Pressure Vessel Code, Section VIII, Division 1
Certifications ANSI/AAMI ST55:2016
Warranty 2 year limited
